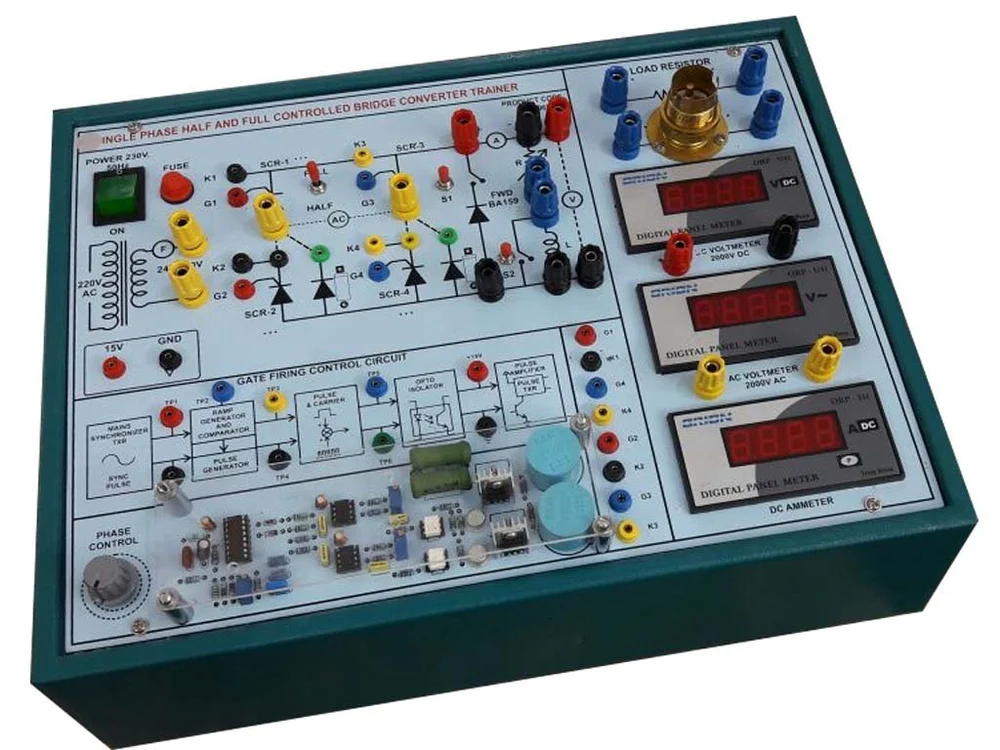

SCR Single Phase Half And Full Controlled Bridge Converter

Product Details:

Description:

Experiment: SCR Single Phase Half And Full Controlled Bridge Converter Using Firing Techniques With R and RL Load.

SPECIFICATIONS:

• Kit comprises of 3 Digital Meters:

1. Voltmeter 2000V AC
2. Voltmeter 2000V DC
3. Ammeter 2A DC

Power supplies:

1. Power Supply +15Vat 150mA
2. Isolated Supply 0-220V or 24V AT 1A.

• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Inductive Load 1W
• Resistive Load (Lamp and Resistor 20W)
• Fuse for Short Circuit protection

Components are mounted on the panels are:

• SCR TYN604
• Diode 1N5408 and BA159
• AC Phase Control by Gate Control Firing Circuit.

SalientFeatures:

• Instruction manual.
• Protection Cover.
• Operated on Mains power 230V, 50Hz.
• Patch Cords 2mm and 4mm Both.
• High Voltage Test Points are Provided With 4mm Safety Sockets
• Supply provided through the 3 pin computer socket with appropriate fuse
• The trainer is housed in Metal cabinet.
• Size of the trainer set 15”x11”
