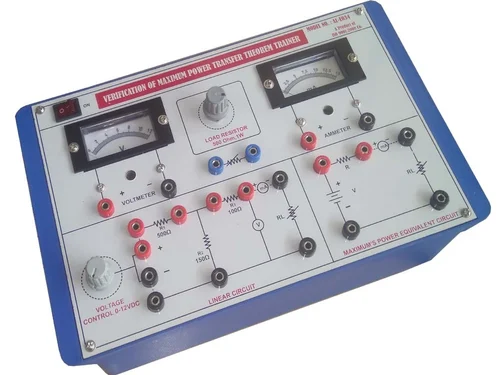

Verification of Maximum Power Transfer Theorem Trainer
+ Free Shipping| Minimum Order Quantity | 01 Unit |
| Power Supply | 12V DC |
| Phase | Three phase |
| Automation Grade | Semi-Automatic |
| Packaging Type | Box |
| Type | Fully Automatic |
| Display Type | Analog |
Description: SCOPE OF LEARNING:
VERIFICATION OF MAXIMUM POWER TRANSFER THEOREM
TECHNICAL SPECIFICATIONS:
Analog Meters:
- Ammeter 30mA DC.
- Voltmeter 12V DC.
Power Supplies:
- DC Supply IC Regulated 0-12V DC, 150mA.
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- Resistances 2Watts
- Variable Resistor
- Voltage Control through Potentiometer.
SALIENTFEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Fuse for Short Circuit protection
- Instruction manual.
- Connections are brought out through 4mm Colored Sockets.
- Patch Cords 4mm.
- The trainer is housed in ABS Plastic cabinet.
- Size of the trainer set 12”x8”
